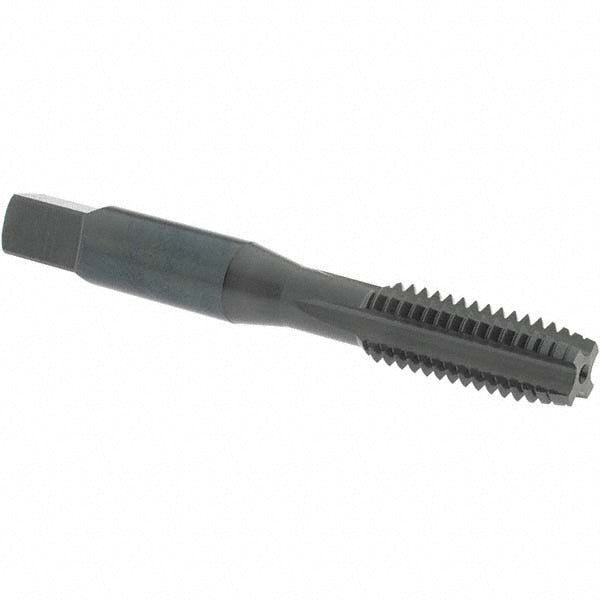

3/8-16 UNC High-Speed Steel Standard Tap, Nitride - OSG 1601507
MFR# 1601507Series 101C
$13.22List $16.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-16
CoatingNitride
Description
The OSG 1601507 is a 3/8-16 UNC High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.4130
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length in1-1/4
Thread limitH5
Thread size in3/8-16
Thread standardUNC
