OSG

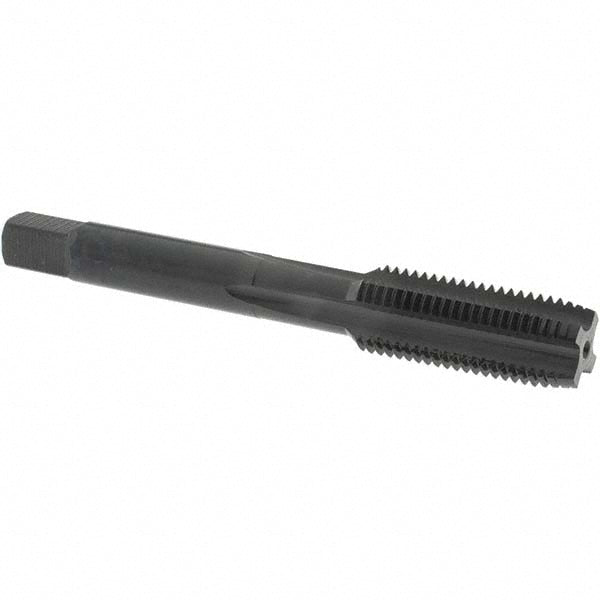

7/16-20 UNF High-Speed Steel Standard Tap, Nitride - OSG 1602307
MFR# 1602307Series 101C
$20.05List $25.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-20
CoatingNitride
Description
The OSG 1602307 is a 7/16-20 UNF High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.6890
Number of flutes4
Overall length in3-5/32
OversizeNo
Shank diameter0.323
Square length0.40625
Square size0.242
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length in1-7/16
Thread limitH3
Thread size in7/16-20
Thread standardUNF
