OSG

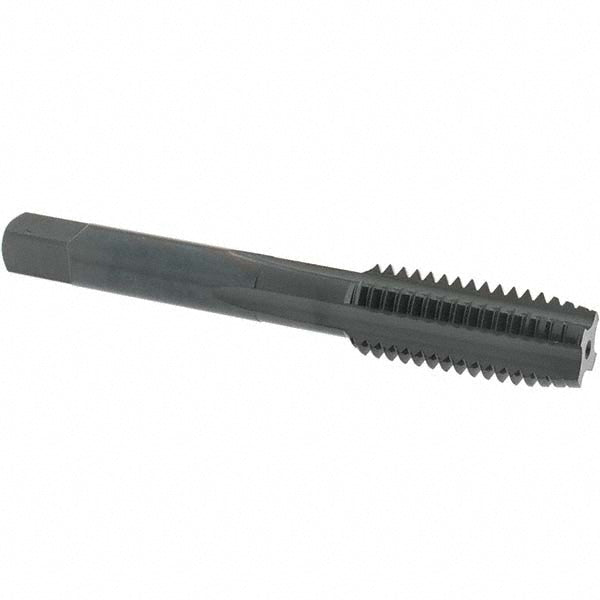

1/2-13 UNC High-Speed Steel Standard Tap, Nitride - OSG 1602707
MFR# 1602707Series 101C
$21.14List $27.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-13
CoatingNitride
Description
The OSG 1602707 is a 1/2-13 UNC High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.8110
Number of flutes4
Overall length in3-3/8
OversizeNo
Shank diameter0.367
Square length0.4375
Square size0.275
Tap typeStandard
Threads per inch13
Thread directionRight Hand
Thread length in1-21/32
Thread limitH3
Thread size in1/2-13
Thread standardUNC
