OSG
5/8-11 UNC High-Speed Steel Standard Tap, Nitride - OSG 1604707
MFR# 1604707Series 101C
$42.32List $54.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingNitride
Description

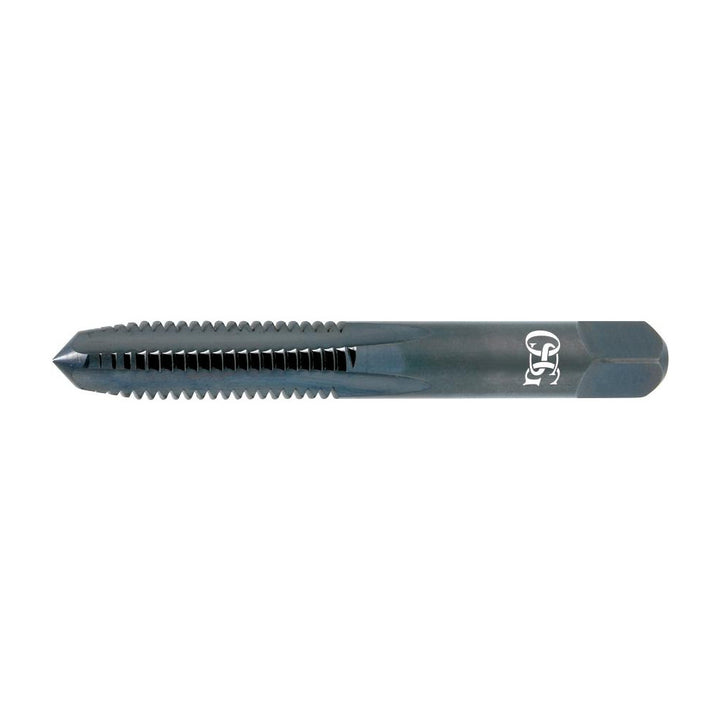

The OSG 1604707 is a 5/8-11 UNC High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length2.0000
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Tap typeStandard
Threads per inch11
Thread directionRight Hand
Thread length in1-13/16
Thread limitH5
Thread size in5/8-11
Thread standardUNC
