1/2-13 UNC Cobalt Tap, TiCN - OSG 1605012138
MFR# 1605012138Series 16050
$174.75List $224.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-13
CoatingTiCN
Description

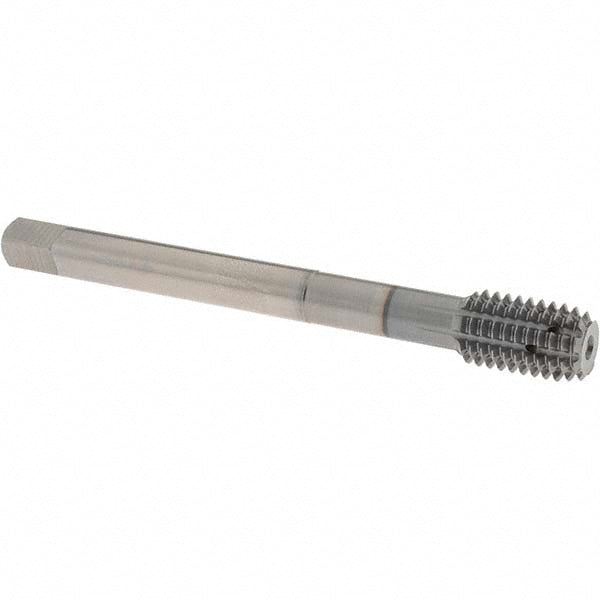

The OSG 1605012138 is a 1/2-13 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit2B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length4.3307
Shank diameter0.3670
Square length0.4375
Square size0.2750
Tapping depth1.9330
Threads per inch13
Thread directionRight Hand
Thread length0.7680
Thread limitH8
Thread size in1/2-13
Thread standardUNC
Trade nameEXOPRO XPF-OIL
