OSG
1/2-20 UNF Cobalt Tap, TiCN - OSG 1605012205
MFR# 1605012205Series 16050
$174.75List $224.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-20
CoatingTiCN
Description

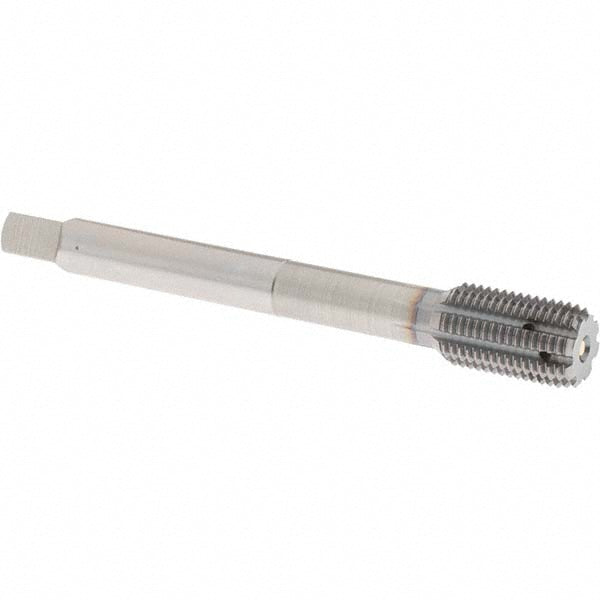

The OSG 1605012205 is a 1/2-20 UNF Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length3.9370
Shank diameter0.3670
Square length0.4375
Square size0.2750
Tapping depth1.9330
Threads per inch20
Thread directionRight Hand
Thread length0.7680
Thread limitH5
Thread size in1/2-20
Thread standardUNF
Trade nameEXOPRO XPF-OIL
