OSG

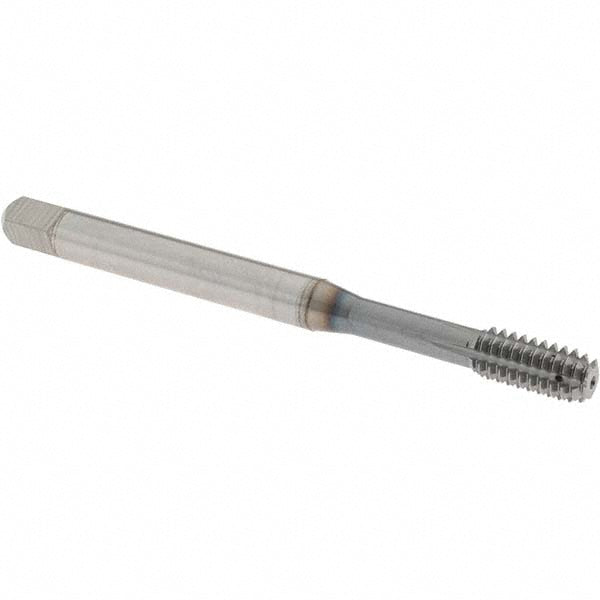

1/4-20 UNC Cobalt Tap, TiCN - OSG 1605014206
MFR# 1605014206Series 16050
$77.54List $99.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiCN
Description
The OSG 1605014206 is a 1/4-20 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit2B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length3.1496
Shank diameter0.2550
Square length0.3125
Square size0.1910
Tapping depth1.1811
Threads per inch20
Thread directionRight Hand
Thread length0.5000
Thread limitH6
Thread size in1/4-20
Thread standardUNC
Trade nameEXOPRO XPF-OIL
