OSG
3/4-16 UNF Cobalt Tap, TiCN - OSG 1605034167
MFR# 1605034167Series 16050
$339.85List $435.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/4-16
CoatingTiCN
Description

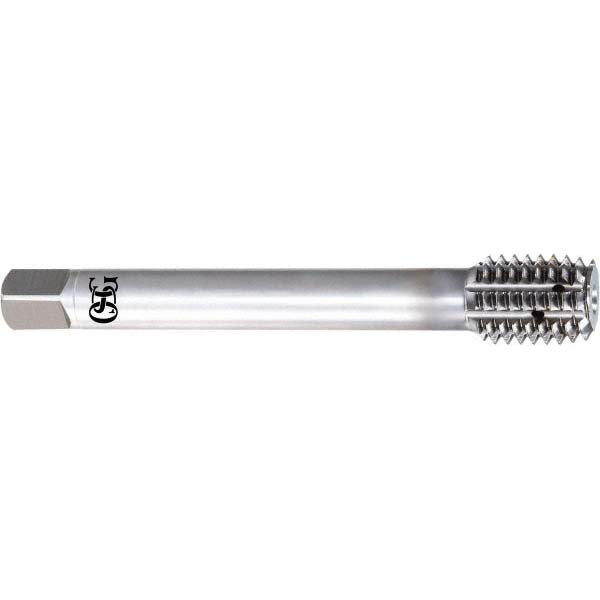

The OSG 1605034167 is a 3/4-16 UNF Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length4.3307
Shank diameter0.5900
Square length0.6875
Square size0.4420
Tapping depth2.4330
Threads per inch16
Thread directionRight Hand
Thread length in1
Thread limitH7
Thread size in3/4-16
Thread standardUNF
Trade nameEXOPRO XPF-OIL
