OSG

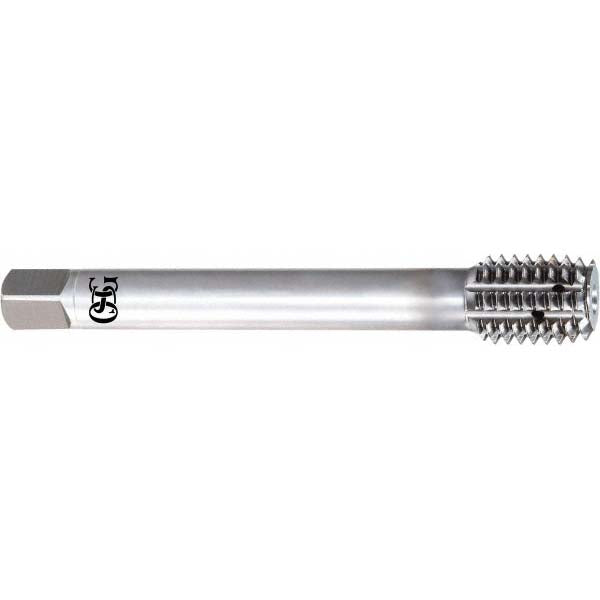

5/16-24 UNF Cobalt Tap, TiCN - OSG 1605056245
MFR# 1605056245Series 16050
$102.64List $131.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-24
CoatingTiCN
Description
The OSG 1605056245 is a 5/16-24 UNF Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length3.5433
Shank diameter0.3180
Square length0.3750
Square size0.2380
Tapping depth1.3780
Threads per inch24
Thread directionRight Hand
Thread length0.5550
Thread limitH5
Thread size in5/16-24
Thread standardUNF
Trade nameEXOPRO XPF-OIL
