OSG

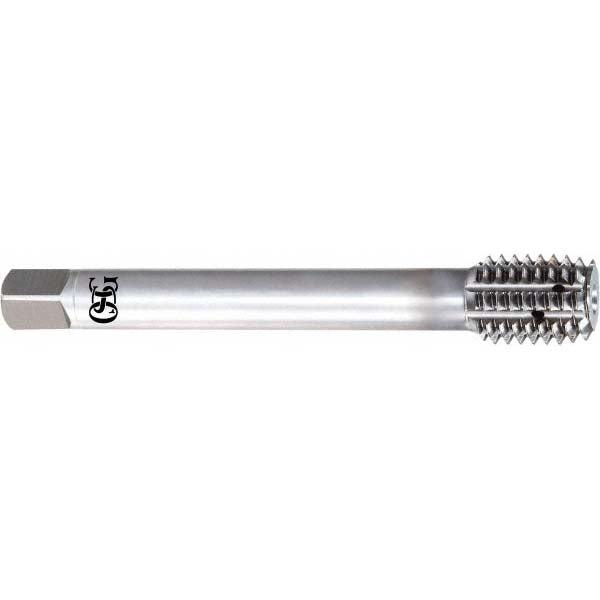

7/16-20 UNF Cobalt Tap - OSG 1605076248
MFR# 1605076248Series 16050
$131.43List $168.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-20
Description
The OSG 1605076248 is a 7/16-20 UNF Cobalt tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4-4.5P
Class of fit2B
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length3.9370
Shank diameter0.3230
Square length0.4063
Square size0.2420
Tapping depth1.7130
Threads per inch20
Thread directionRight Hand
Thread length0.7130
Thread limitH8
Thread size in7/16-20
Thread standardUNF
Trade nameEXOPRO XPF-OIL
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
