OSG

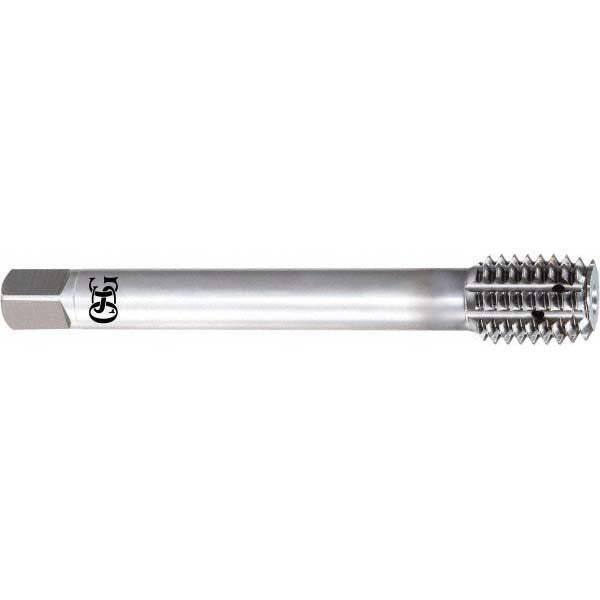

7/8-9 UNC Cobalt Tap, TiCN - OSG 1605078908
MFR# 1605078908Series 16050
$393.39List $504.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/8-9
CoatingTiCN
Description
The OSG 1605078908 is a 7/8-9 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length5.5118
Shank diameter0.6970
Square length0.7500
Square size0.5230
Tapping depth2.6540
Threads per inch9
Thread directionRight Hand
Thread length1.1100
Thread limitH8
Thread size in7/8-9
Thread standardUNC
Trade nameEXOPRO XPF-OIL
