OSG

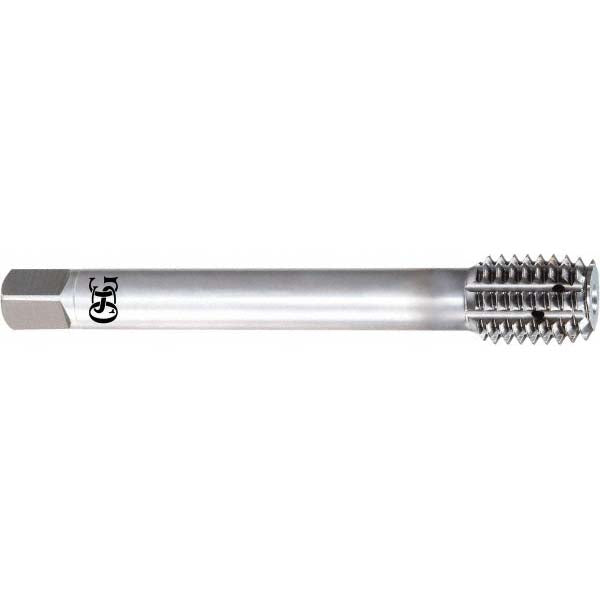

9/16-12 UNC Cobalt Tap, TiCN - OSG 1605096120
MFR# 1605096120Series 16050
$249.80List $314.81
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size9/16-12
CoatingTiCN
Description
The OSG 1605096120 is a 9/16-12 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit2B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length4.3307
Shank diameter0.4290
Square length0.5000
Square size0.3220
Tapping depth1.9330
Threads per inch12
Thread directionRight Hand
Thread length0.8350
Thread limitH10
Thread size in9/16-12
Thread standardUNC
Trade nameEXOPRO XPF-OIL
