OSG

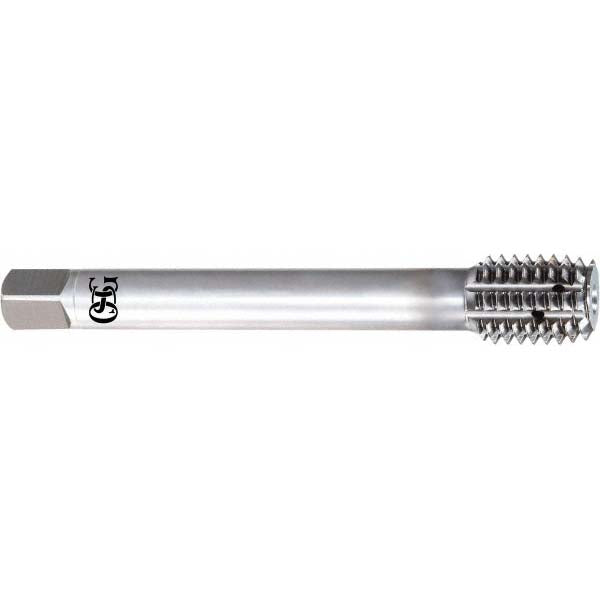

9/16-18 UNF Cobalt Tap, TiCN - OSG 1605096187
MFR# 1605096187Series 16050
$223.08List $286.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size9/16-18
CoatingTiCN
Description
The OSG 1605096187 is a 9/16-18 UNF Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit3B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; K; N; H
Overall length3.9370
Shank diameter0.4290
Square length0.5000
Square size0.3220
Tapping depth1.9330
Threads per inch18
Thread directionRight Hand
Thread length0.8350
Thread limitH7
Thread size in9/16-18
Thread standardUNF
Trade nameEXOPRO XPF-OIL
