OSG

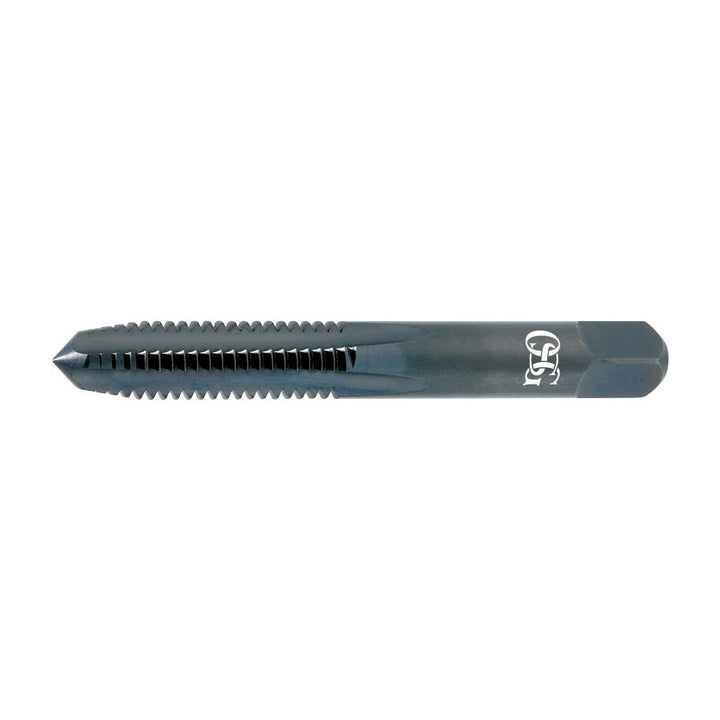

M10x1.5 Metric Coarse High-Speed Steel Standard Tap, Nitride - OSG 1608607
MFR# 1608607Series 141C
$23.79List $30.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingNitride
Description
The OSG 1608607 is a Metric Coarse High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length35.10
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square length (mm)11.1125
Square size0.2860
Tap typeStandard
Thread directionRight Hand
Thread length in1-1/4
Thread limitD6
Thread size (mm)M10x1.5
Thread standardMetric Coarse
