OSG

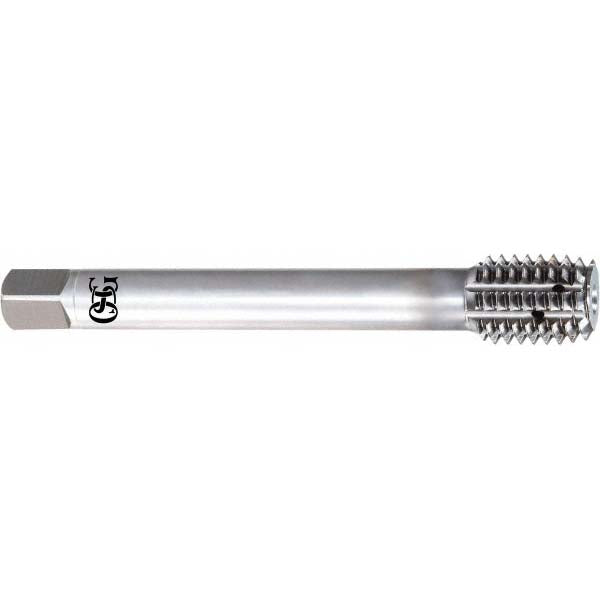

M12x1.5 Metric Fine Cobalt Tap, TiCN - OSG 1615012151
MFR# 1615012151Series 16150
$151.30List $194.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 1615012151 is a Metric Fine Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit2B
Coating finishTiCN
Coolant throughYes
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length3.9370
Shank diameter0.3670
Square length (mm)11.11
Square size0.2756
Tapping depth1.9331
Thread directionRight Hand
Thread length0.6693
Thread limitD11
Thread size (mm)M12x1.5
Thread standardMetric Fine
Trade nameEXOPRO XPF-OIL
