OSG
#2-56 UNC Cobalt Tap, TiCN - OSG 1625002563
MFR# 1625002563Series 16250
$69.75List $89.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#2-56
CoatingTiCN
Description

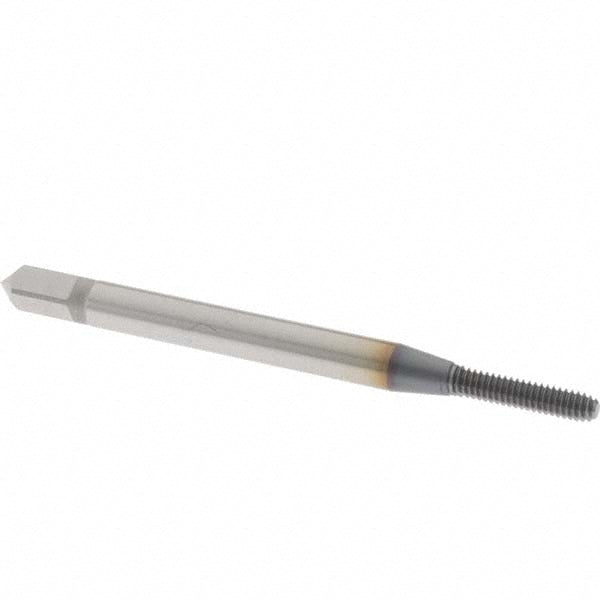

The OSG 1625002563 is a #2-56 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length1.7717
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.4240
Threads per inch56
Thread directionRight Hand
Thread length0.3843
Thread limitH3
Thread size in#2-56
Thread standardUNC
Trade nameEXOPRO XPF
