OSG

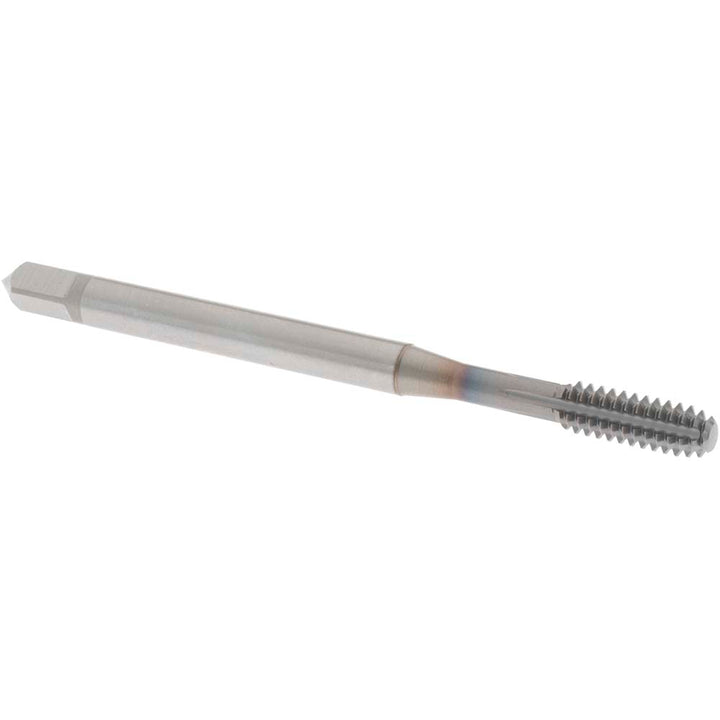

#10-24 UNC Cobalt Tap, TiCN - OSG 1625010244
MFR# 1625010244Series 16250
$63.09List $80.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-24
CoatingTiCN
Description
The OSG 1625010244 is a #10-24 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length2.7559
Shank diameter0.1940
Square length0.2500
Square size0.1520
Tapping depth0.9660
Threads per inch24
Thread directionRight Hand
Thread length0.5209
Thread limitH4
Thread size in#10-24
Thread standardUNC
Trade nameEXOPRO XPF
