OSG

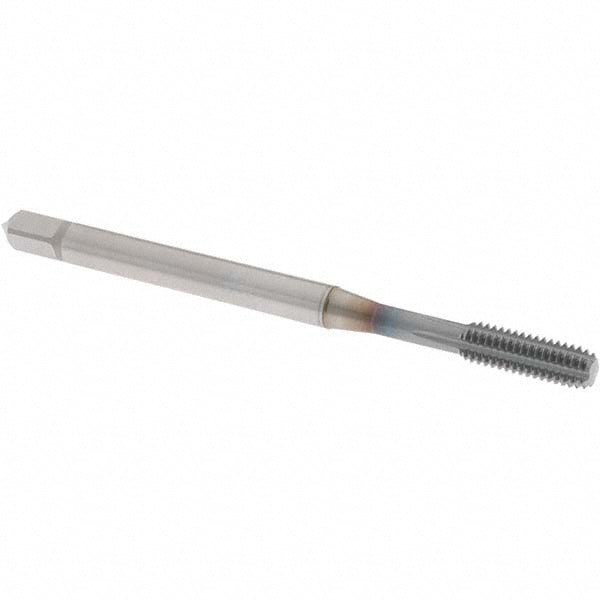

#10-32 UNF Cobalt Tap, TiCN - OSG 1625010324
MFR# 1625010324Series 16250
$78.57List $99.01
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingTiCN
Description
The OSG 1625010324 is a #10-32 UNF Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length2.7559
Shank diameter0.1940
Square length0.2500
Square size0.1520
Tapping depth0.9610
Threads per inch32
Thread directionRight Hand
Thread length0.5161
Thread limitH4
Thread size in#10-32
Thread standardUNF
Trade nameEXOPRO XPF
