OSG

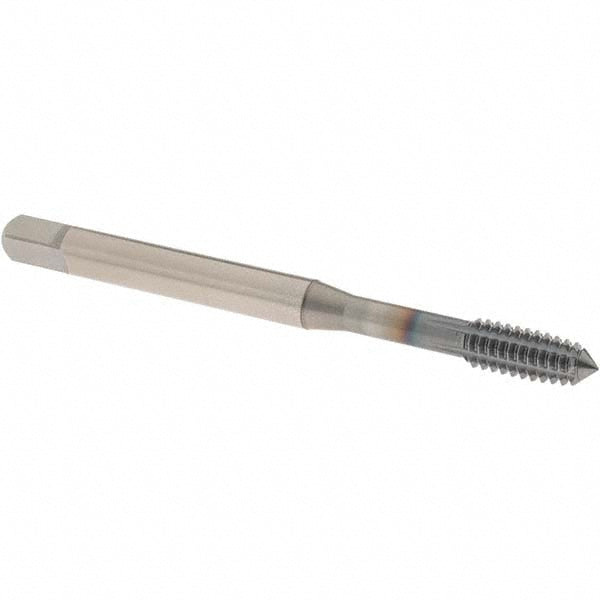

1/4-20 UNC Cobalt Tap - OSG 1625014246
MFR# 1625014246Series 16250
$70.26List $90.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
Description
The OSG 1625014246 is a 1/4-20 UNC Cobalt tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4-4.5P
Class of fit2B
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length3.1496
Shank diameter0.2550
Square length0.3125
Square size0.1910
Tapping depth1.3780
Threads per inch20
Thread directionRight Hand
Thread length0.4961
Thread limitH6
Thread size in1/4-20
Thread standardUNC
Trade nameEXOPRO XPF
