OSG
3/8-16 UNC Cobalt Tap, TiCN - OSG 1625038165
MFR# 1625038165Series 16250
$113.42List $145.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/8-16
CoatingTiCN
Description

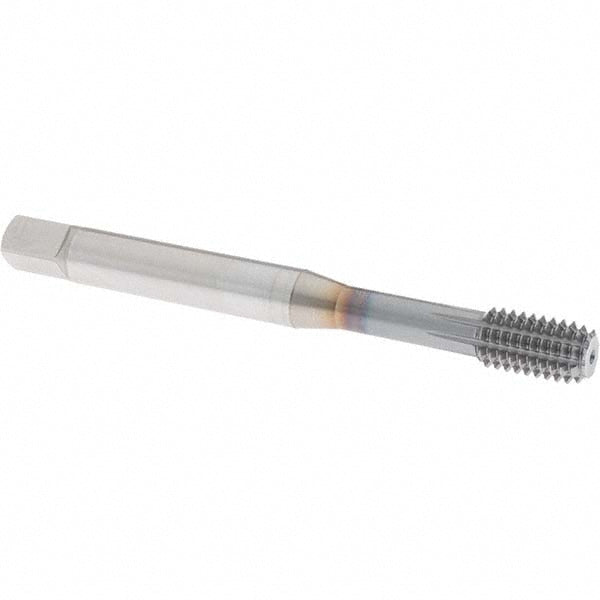

The OSG 1625038165 is a 3/8-16 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length3.9370
Shank diameter0.3810
Square length0.4375
Square size0.2860
Tapping depth1.5748
Threads per inch16
Thread directionRight Hand
Thread length in5/8
Thread limitH5
Thread size in3/8-16
Thread standardUNC
Trade nameEXOPRO XPF
