OSG

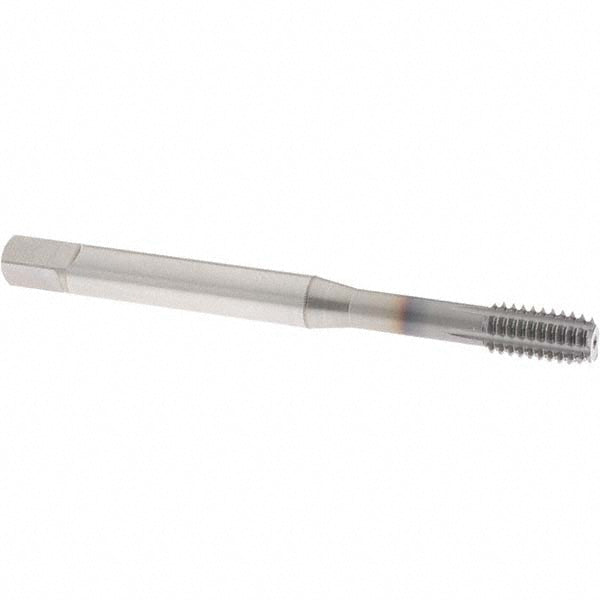

5/16-18 UNC Cobalt Tap, TiCN - OSG 1625056185
MFR# 1625056185Series 16250
$93.03List $119.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiCN
Description
The OSG 1625056185 is a 5/16-18 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length3.5433
Shank diameter0.3180
Square length0.3750
Square size0.2380
Tapping depth1.3780
Threads per inch18
Thread directionRight Hand
Thread length0.5550
Thread limitH5
Thread size in5/16-18
Thread standardUNC
Trade nameEXOPRO XPF
