OSG

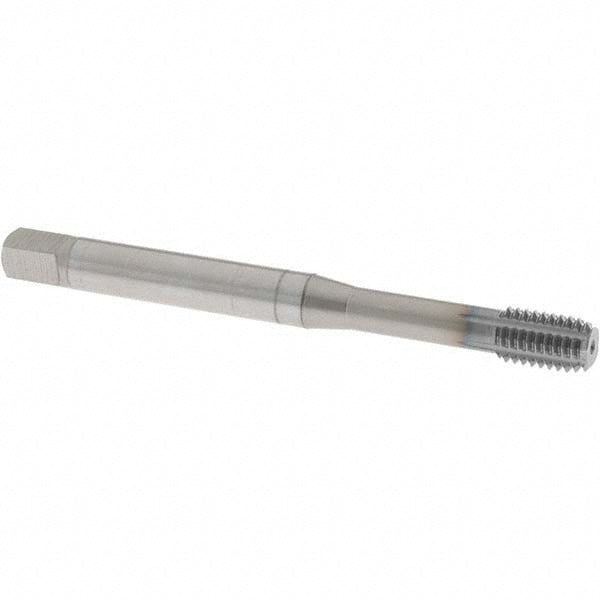

M8x1.25 Metric Coarse Cobalt Tap, TiCN - OSG 1635008259
MFR# 1635008259Series 16350
$84.57List $108.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 1635008259 is a Metric Coarse Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length3.5432999999999999
Shank diameter0.3180
Square length (mm)9.53
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.4724
Thread limitD9
Thread size (mm)M8x1.25
Thread standardMetric Coarse
Trade nameEXOPRO XPF
