OSG

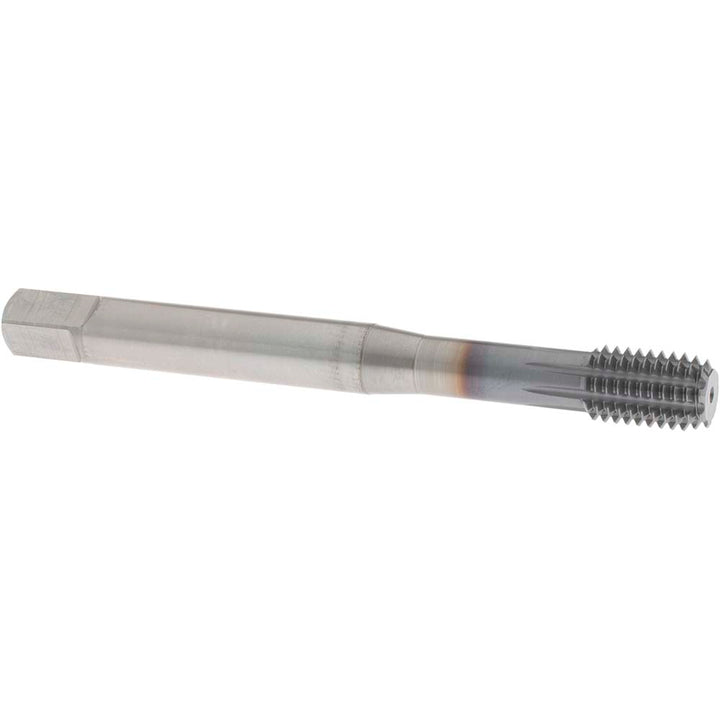

M10x1.5 Metric Coarse Cobalt Tap, TiCN - OSG 1635010156
MFR# 1635010156Series 16350
$103.17List $132.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 1635010156 is a Metric Coarse Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2.5-3P
Class of fit4H
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Cast Aluminum; Hardened Steel; Carbon Steel; Alloy Steel; Die Steel; Stainless Steel; High-Nickel Alloy; Titanium
Material application codeP; M; N; H
Overall length3.9370
Shank diameter0.3810
Square length (mm)11.11
Square size0.2860
Tapping depth1.5354
Thread directionRight Hand
Thread length0.5906
Thread limitD6
Thread size (mm)M10x1.5
Thread standardMetric Coarse
Trade nameEXOPRO XPF
