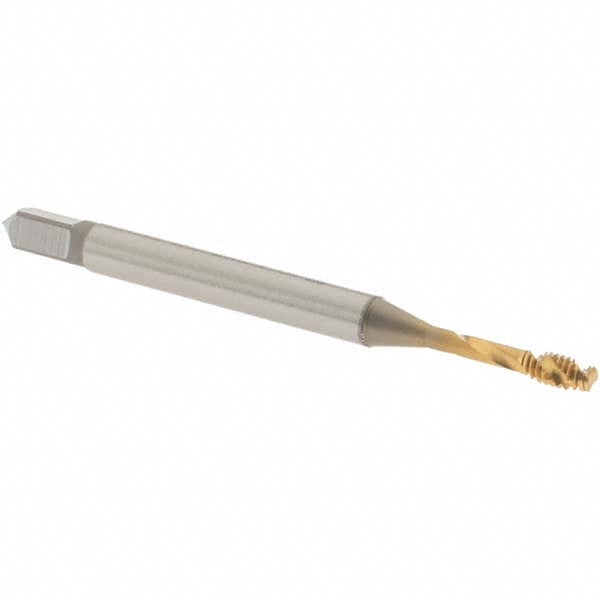

#2-56 UNC Vanadium High-Speed Steel Tap, TiN - OSG 1645002562
MFR# 1645002562Series 16450
$72.93List $93.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#2-56
CoatingTiN
Description
The OSG 1645002562 is a #2-56 UNC Vanadium High-Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length0.472
Number of flutes2
Overall length1.772
Shank diameter0.141
Square length0.1875
Square size0.11
Tapping depth0.4375
Threads per inch56
Thread directionRight Hand
Thread length0.142
Thread limitH2
Thread size in#2-56
Thread standardUNC
