OSG

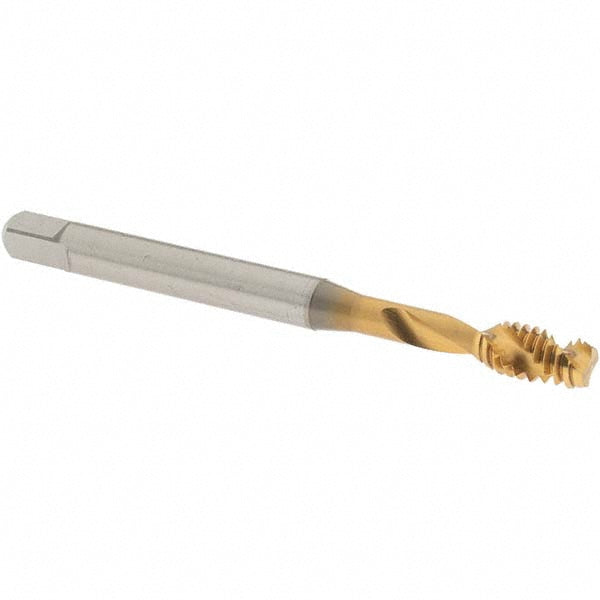

1/4-20 UNC Vanadium High-Speed Steel Tap, TiN - OSG 1645014203
MFR# 1645014203Series 16450
$51.51List $66.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
CoatingTiN
Description
The OSG 1645014203 is a 1/4-20 UNC Vanadium High-Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.177
Number of flutes2
Overall length3.15
Shank diameter0.255
Square length0.3125
Square size0.191
Tapping depth1.0000
Threads per inch20
Thread directionRight Hand
Thread length0.398
Thread limitH3
Thread size in1/4-20
Thread standardUNC
