OSG

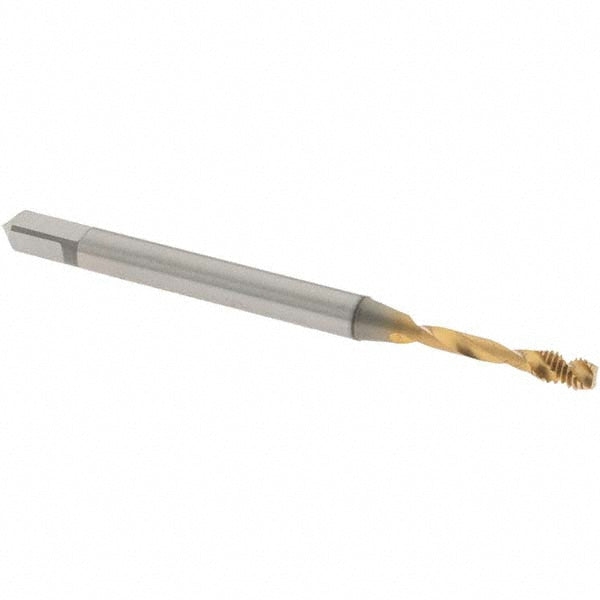

M2.5x0.45 M Vanadium High-Speed Steel Tap, TiN - OSG 1645525453
MFR# 1645525453Series 16455
$65.86List $84.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 1645525453 is a M Vanadium High-Speed Steel tap with a TiN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length (mm)14.1
Number of flutes2
Overall length (mm)5
OversizeNo
Shank diameter (mm)3.5814
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)3.7
Thread limitD3
Thread size (mm)M2.5x0.45
Thread standardM
