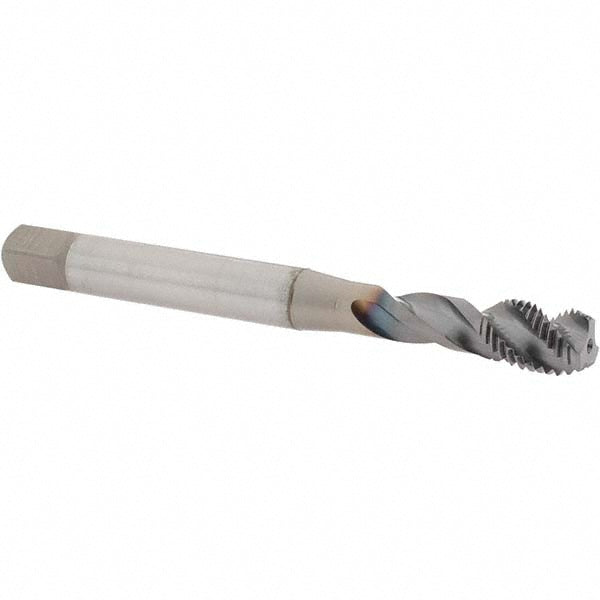

M10x1.25 MF Powdered Metal Tap, TiCN - OSG 1650001208

OSG

M10x1.25 MF Powdered Metal Tap, TiCN - OSG 1650001208

MFR# 1650001208Series 16500

$65.09List $83.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingTiCN

Description

The OSG 1650001208 is a MF Powdered Metal tap with a TiCN finish. 3 flutes.

Specifications

ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length2.125
Number of flutes3
Overall length4.331
Shank diameter0.48
Square length0
Square size0
Tapping depth (mm)39.00
Threads per inch0
Thread directionRight Hand
Thread length (mm)12
Thread limitD5
Thread size (mm)M10x1.25
Thread standardMF
