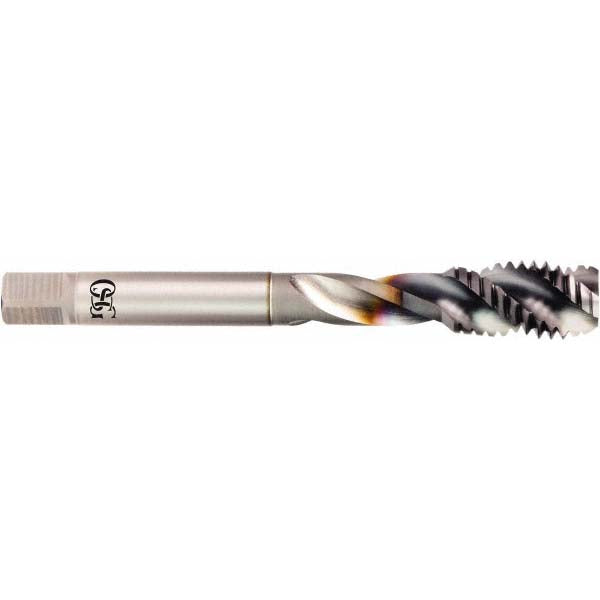

M16x1.5 MF Powdered Metal Tap, TiCN - OSG 1650002008

OSG

M16x1.5 MF Powdered Metal Tap, TiCN - OSG 1650002008

MFR# 1650002008Series 16500

$114.23List $146.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingTiCN

Description

The OSG 1650002008 is a MF Powdered Metal tap with a TiCN finish. 3 flutes.

Specifications

ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length1.933
Number of flutes3
Overall length4.331
Shank diameter0.367
Square length0
Square size0
Tapping depth (mm)54.00
Threads per inch0
Thread directionRight Hand
Thread length (mm)16
Thread limitD6
Thread size (mm)M16x1.5
Thread standardMF
