OSG

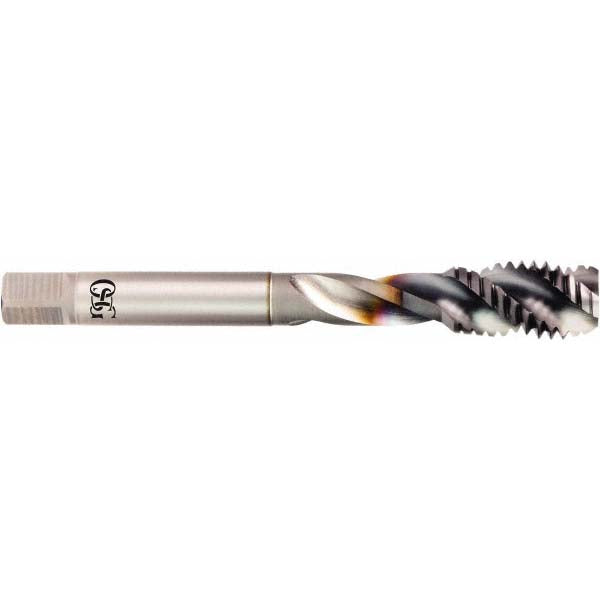

M20x1.5 Metric Fine Powdered Metal Tap, TiCN - OSG 1650002408
MFR# 1650002408Series 16500
$230.05List $295.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The OSG 1650002408 is a Metric Fine Powdered Metal tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length3.1100
Number of flutes4
Overall length5.5120
Shank diameter0.8000
Tapping depth (mm)62.00
Thread directionRight Hand
Thread length (mm)16.00
Thread limitD6
Thread size (mm)M20x1.5
Thread standardMetric Fine
