OSG

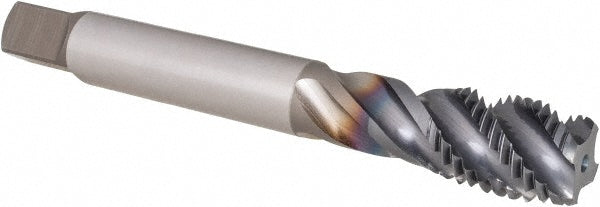

M20x2.5 M Powdered Metal Tap, TiCN - OSG 1650002508
MFR# 1650002508Series 16500
$230.02List $295.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The OSG 1650002508 is a M Powdered Metal tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length3.11
Number of flutes4
Overall length6.299
Shank diameter0.8
Square length0
Square size0
Tapping depth (mm)62.00
Threads per inch0
Thread directionRight Hand
Thread length (mm)25
Thread limitD7
Thread size (mm)M20x2.5
Thread standardM
