OSG

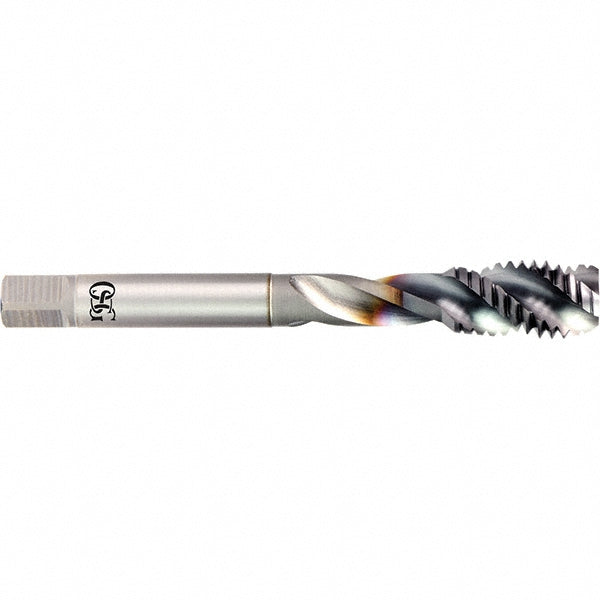

M36x4 Metric Fine Powdered Metal Tap, TiCN - OSG 1650008408
MFR# 1650008408Series 16500
$633.95List $813.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The OSG 1650008408 is a Metric Fine Powdered Metal tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length (mm)115.00
Number of flutes4
Overall length (mm)2.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; Hardened Materials
Tapping depth (mm)115.00
Thread directionRight Hand
Thread length (mm)48.00
Thread limitD11
Thread size (mm)M36x4
Thread standardMetric Fine
