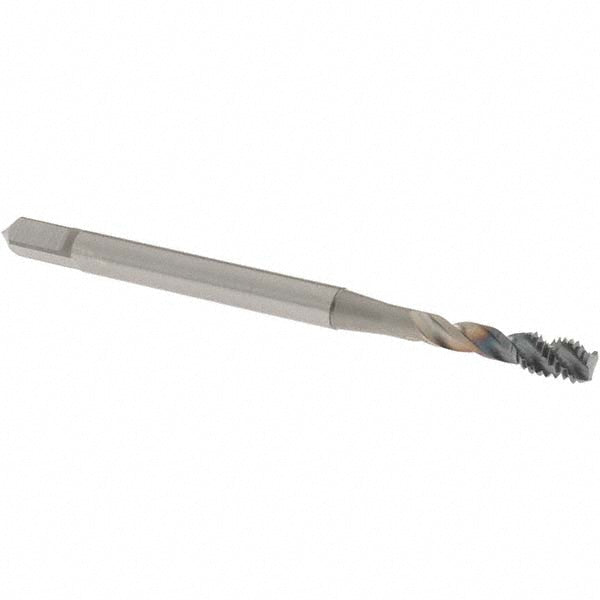

M4x0.7 M Powdered Metal Tap - OSG 1650010208
MFR# 1650010208Series 16500
$33.15List $42.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The OSG 1650010208 is a M Powdered Metal tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length (mm)2.9
Number of flutes3
Overall length (mm)63
Shank diameter0.1680
Square length0
Square size0
Tapping depth (mm)22.00
Threads per inch0
Thread directionRight Hand
Thread length (mm)5.6
Thread limitD4
Thread size (mm)M4x0.7
Thread standardM
