OSG

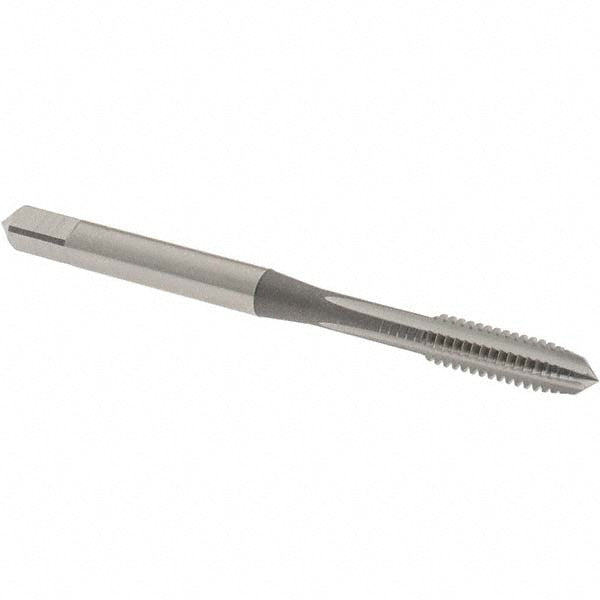

#8-32 UNC High-Speed Steel Standard Tap - OSG 1650500
MFR# 1650500Series 101L
$9.04List $11.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#8-32
Description
The OSG 1650500 is a #8-32 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.3000
Number of flutes4
Overall length in2-1/8
OversizeNo
Shank diameter0.168
Square length0.25
Square size0.131
Tap typeStandard
Threads per inch32
Thread directionLeft Hand
Thread length in3/4
Thread limitH3
Thread size in#8-32
Thread standardUNC
