OSG

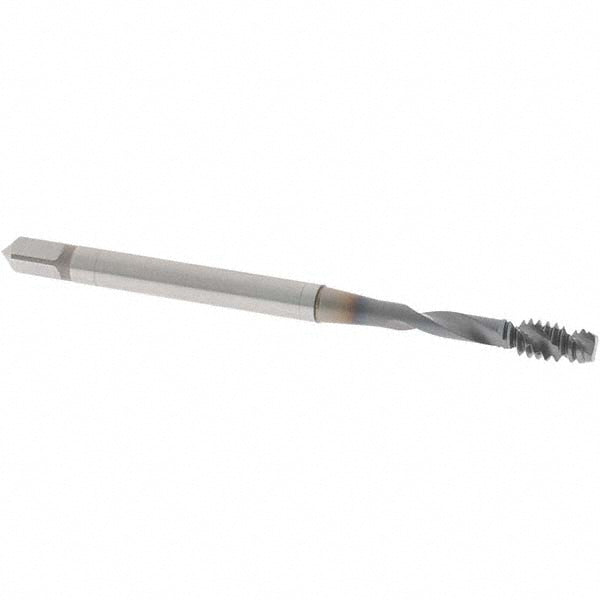

#6-32 UNC Powdered Metal Tap, TiCN - OSG 1650500508
MFR# 1650500508Series 16505
$28.65List $36.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#6-32
CoatingTiCN
Description
The OSG 1650500508 is a #6-32 UNC Powdered Metal tap with a TiCN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length1.377
Number of flutes2
Overall length3.543
Shank diameter0.381
Square length0.1875
Square size0.11
Tapping depth (mm)20.00
Threads per inch32
Thread directionRight Hand
Thread length0.248
Thread limitH3
Thread size in#6-32
Thread standardUNC
