OSG

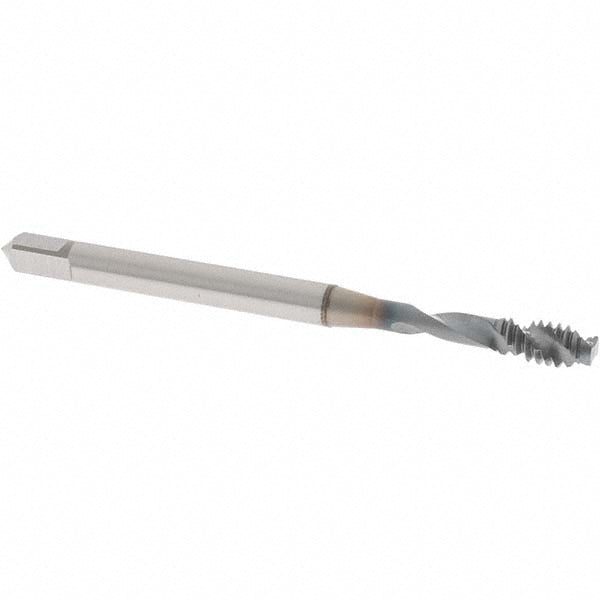

#10-24 UNC Powdered Metal Tap, TiCN - OSG 1650501108
MFR# 1650501108Series 16505
$29.53List $37.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-24
CoatingTiCN
Description
The OSG 1650501108 is a #10-24 UNC Powdered Metal tap with a TiCN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length0.559
Number of flutes2
Overall length1.875
Shank diameter0.141
Square length0.25
Square size0.152
Tapping depth (mm)25.00
Threads per inch24
Thread directionRight Hand
Thread length0.326
Thread limitH3
Thread size in#10-24
Thread standardUNC
