OSG

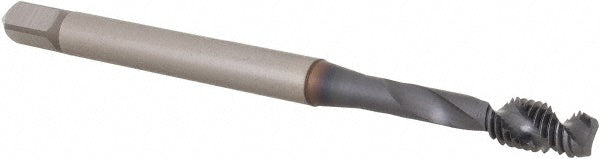

#10-32 UNF Powdered Metal Tap, TiCN - OSG 1650501208
MFR# 1650501208Series 16505
$32.80List $41.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingTiCN
Description
The OSG 1650501208 is a #10-32 UNF Powdered Metal tap with a TiCN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length (mm)22.7
Number of flutes2
Overall length (mm)55
Shank diameter0.1940
Square length0.25
Square size0.152
Tapping depth (mm)25.00
Threads per inch32
Thread directionRight Hand
Thread length0.326
Thread limitH3
Thread size in#10-32
Thread standardUNF
