OSG

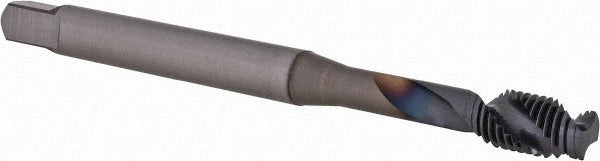

1/4-28 UNF Powdered Metal Tap, TiCN - OSG 1650501808
MFR# 1650501808Series 16505
$32.19List $41.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-28
CoatingTiCN
Description
The OSG 1650501808 is a 1/4-28 UNF Powdered Metal tap with a TiCN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Number of flutes2
Overall length (mm)11
Shank diameter0.2550
Square length0.3125
Square size0.191
Tapping depth (mm)30.00
Threads per inch28
Thread directionRight Hand
Thread length0.397
Thread limitH4
Thread size in1/4-28
Thread standardUNF
