OSG

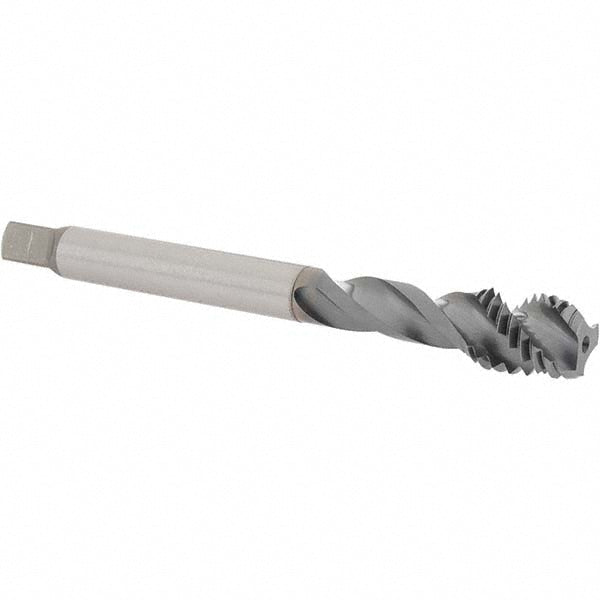

1/2-13 UNC Powdered Metal Tap, TiCN - OSG 1650503308
MFR# 1650503308Series 16505
$57.72List $74.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description
The OSG 1650503308 is a 1/2-13 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length (mm)25
Number of flutes3
Overall length (mm)7
Shank diameter0.3670
Square length0.4375
Square size0.275
Tapping depth (mm)49.00
Threads per inch13
Thread directionRight Hand
Thread length0.614
Thread limitH3
Thread size in1/2-13
Thread standardUNC
