OSG

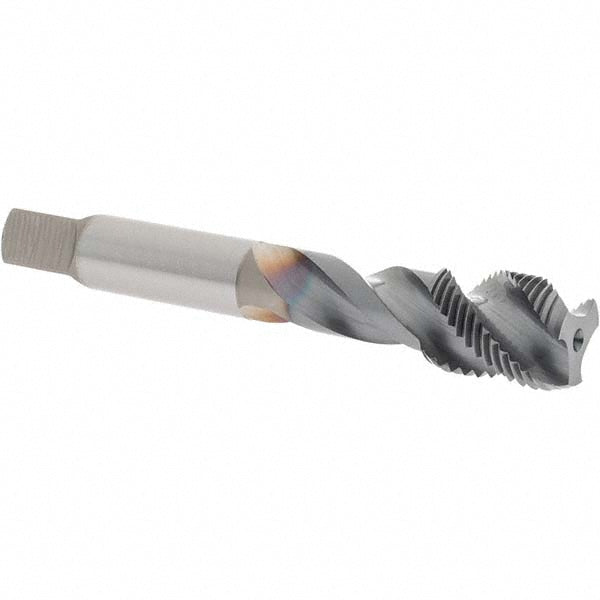

5/8-18 UNF Powdered Metal Tap, TiCN - OSG 1650504208
MFR# 1650504208Series 16505
$109.78List $140.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-18
CoatingTiCN
Description
The OSG 1650504208 is a 5/8-18 UNF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length1.378
Number of flutes3
Overall length3.543
Shank diameter0.381
Square length0.5625
Square size0.36
Tapping depth (mm)54.00
Threads per inch18
Thread directionRight Hand
Thread length0.728
Thread limitH5
Thread size in5/8-18
Thread standardUNF
