OSG

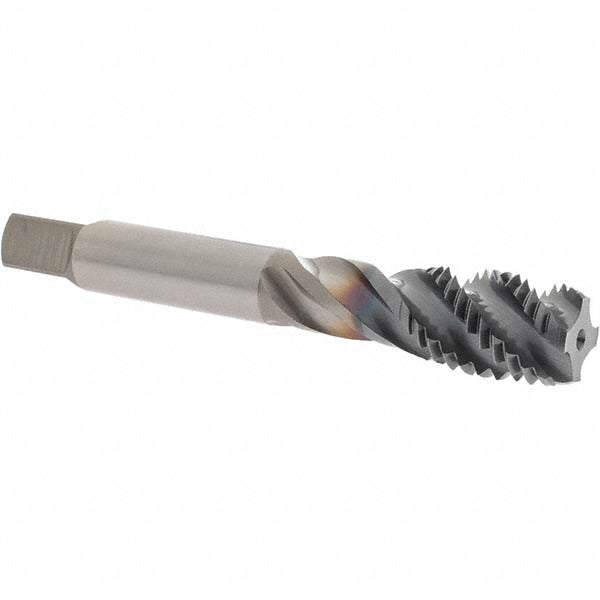

3/4-10 UNC Powdered Metal Tap, TiCN - OSG 1650504508
MFR# 1650504508Series 16505
$140.29List $179.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiCN
Description
The OSG 1650504508 is a 3/4-10 UNC Powdered Metal tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length (mm)67.4
Number of flutes4
Overall length (mm)125
Shank diameter0.5900
Square length0.6875
Square size0.442
Tapping depth (mm)62.00
Threads per inch10
Thread directionRight Hand
Thread length1
Thread limitH3
Thread size in3/4-10
Thread standardUNC
