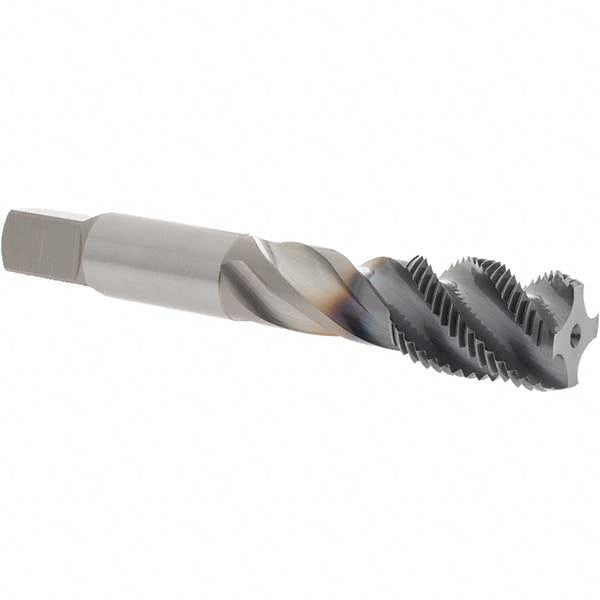

3/4-16 UNF Powdered Metal Tap, TiCN - OSG 1650504708
MFR# 1650504708Series 16505
$147.32List $188.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingTiCN
Description
The OSG 1650504708 is a 3/4-16 UNF Powdered Metal tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length (mm)39
Number of flutes4
Overall length (mm)1
Shank diameter0.5900
Square length0.6875
Square size0.442
Tapping depth (mm)62.00
Threads per inch16
Thread directionRight Hand
Thread length1
Thread limitH3
Thread size in3/4-16
Thread standardUNF
