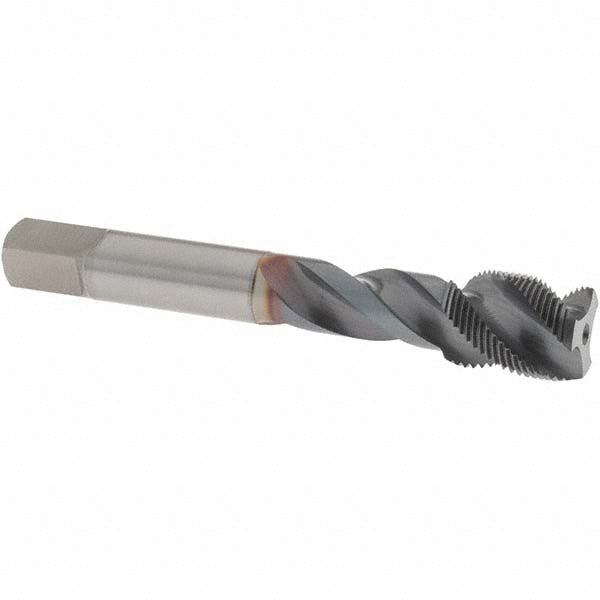

5/8-24 UNEF Powdered Metal Tap, TiCN - OSG 1650506308
MFR# 1650506308Series 16505
$132.61List $170.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-24
CoatingTiCN
Description
The OSG 1650506308 is a 5/8-24 UNEF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length2.125
Number of flutes3
Overall length3.937
Shank diameter0.48
Square length0.5625
Square size0.36
Tapping depth (mm)54.00
Threads per inch24
Thread directionRight Hand
Thread length0.728
Thread limitH4
Thread size in5/8-24
Thread standardUNEF
