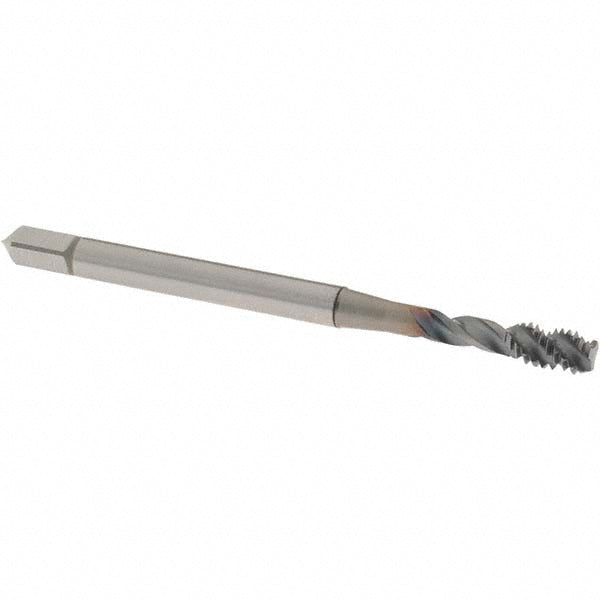

#8-32 UNC Powdered Metal Tap - OSG 1650509608
MFR# 1650509608Series 16505
$28.65List $36.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
Description
The OSG 1650509608 is a #8-32 UNC Powdered Metal tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length0.826
Number of flutes3
Overall length2.48
Shank diameter0.168
Square length0.25
Square size0.131
Tapping depth (mm)21.00
Threads per inch32
Thread directionRight Hand
Thread length0.251
Thread limitH2
Thread size in#8-32
Thread standardUNC
