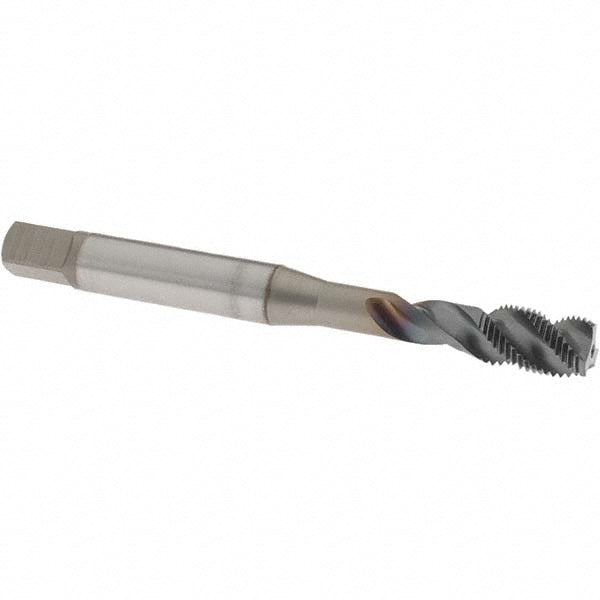

5/16-32 UNEF Powdered Metal Tap - OSG 1650511508
MFR# 1650511508Series 16505
$43.18List $55.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-32
Description
The OSG 1650511508 is a 5/16-32 UNEF Powdered Metal tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.377
Number of flutes3
Overall length3.15
Shank diameter0.318
Square length0.375
Square size0.238
Tapping depth (mm)35.00
Threads per inch32
Thread directionRight Hand
Thread length0.444
Thread limitH3
Thread size in5/16-32
Thread standardUNEF
