OSG

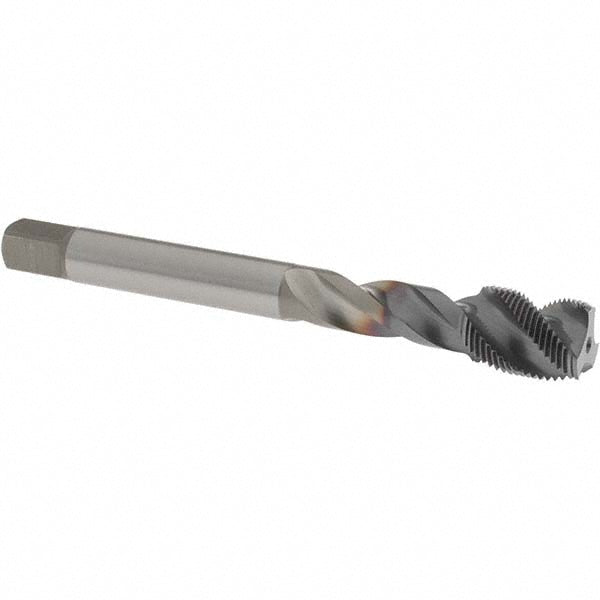

1/2-28 UNEF Powdered Metal Tap - OSG 1650513008
MFR# 1650513008Series 16505
$69.77List $89.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-28
Description
The OSG 1650513008 is a 1/2-28 UNEF Powdered Metal tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.933
Number of flutes3
Overall length3.937
Shank diameter0.367
Square length0.4375
Square size0.275
Tapping depth (mm)49.00
Threads per inch28
Thread directionRight Hand
Thread length0.614
Thread limitH4
Thread size in1/2-28
Thread standardUNEF
