OSG
#6-32 UNC VC-10 Tap - OSG 1650513208
MFR# 1650513208Series 16505
$28.65List $36.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#6-32
Description

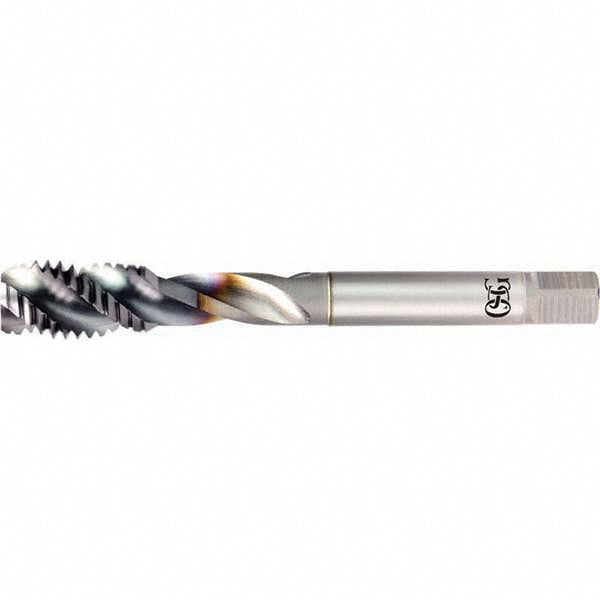

The OSG 1650513208 is a #6-32 UNC VC-10 tap. 2 flutes.
Specifications
ChamferBottoming
Class of fitNormal
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialVC-10
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.713
Number of flutes2
Overall length3.937
Shank diameter0.323
Square length0.1875
Square size0.11
Tapping depth0.7830
Threads per inch32
Thread directionRight Hand
Thread length0.248
Thread limitH3
Thread size in#6-32
Thread standardUNC
