OSG

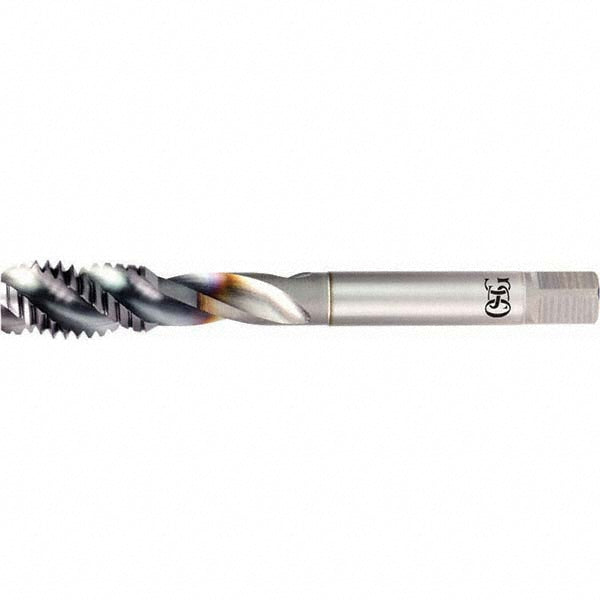

1-14 UNS VC-10 Tap - OSG 1650513308
MFR# 1650513308Series 16505
$272.89List $350.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-14
Description
The OSG 1650513308 is a 1-14 UNS VC-10 tap. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fitNormal
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialVC-10
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length3.0110
Number of flutes4
Overall length5.5100
Shank diameter0.8000
Square length0.8125
Square size0.6
Tapping depth3.0110
Threads per inch14
Thread directionRight Hand
Thread length1.251
Thread limitH6
Thread size in1-14
Thread standardUNS
