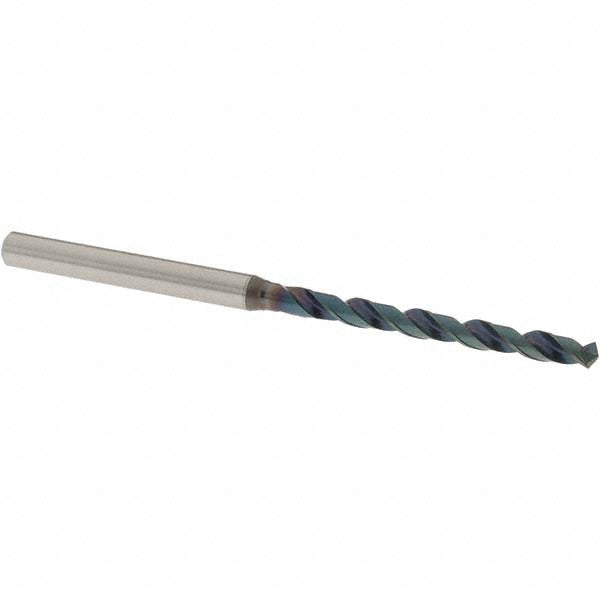

1/8" Vanadium High Speed Steel Drill Bit, WD1, 130° point - OSG 16511915
MFR# 16511915Series 1650
$27.74List $34.95
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
Description
The OSG 16511915 is a 1/8" Vanadium High Speed Steel drill bit with a WD1 finish, 130° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1650.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingWD1
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute length (mm)36.00
Flute typeSpiral
Number of flutes2
Overall length (mm)68.00
Point typeS-Thinned
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
