OSG

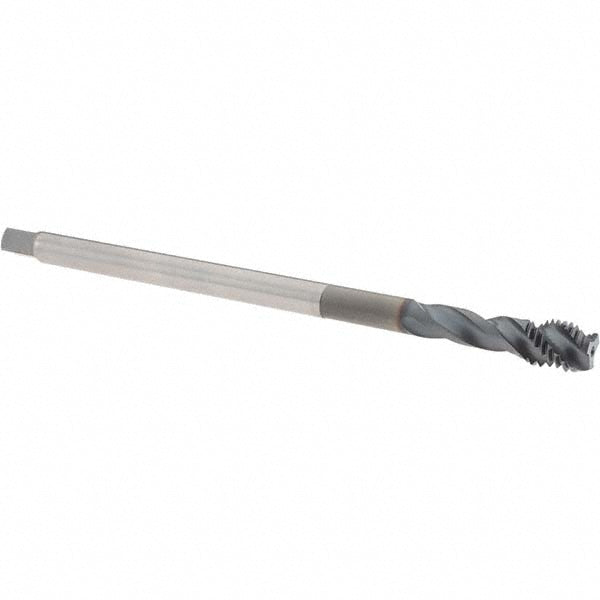

M12x1.75 M Powdered Metal Tap, TiCN - OSG 1652006708
MFR# 1652006708Series 16520
$110.80List $142.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 1652006708 is a M Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length (mm)72
Number of flutes3
Overall length (mm)18
OversizeNo
Shank diameter (mm)9.3218
Square length0
Square size0
Tapping depth (mm)72.00
Threads per inch0
Thread directionRight Hand
Thread length (mm)14
Thread limitD6
Thread size (mm)M12x1.75
Thread standardM
