OSG

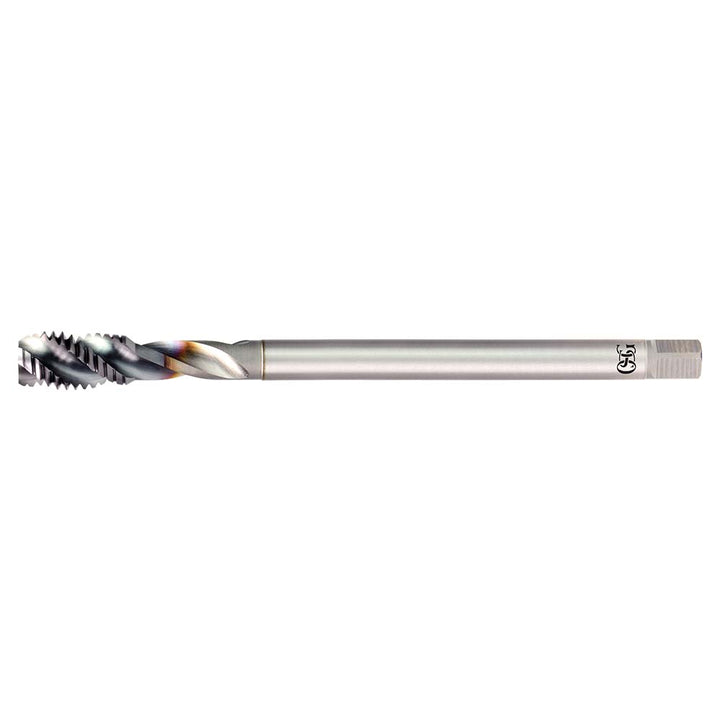

#8-32 UNC Powdered Metal Tap, TiCN - OSG 1652500908
MFR# 1652500908Series 16525
$53.32List $68.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-32
CoatingTiCN
Description
The OSG 1652500908 is a #8-32 UNC Powdered Metal tap with a TiCN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length0.827
Number of flutes2
Overall length4.724
OversizeNo
Shank diameter0.168
Square length0.25
Square size0.131
Tapping depth (mm)23.00
Threads per inch32
Thread directionRight Hand
Thread length0.252
Thread limitH3
Thread size in#8-32
Thread standardUNC
